Learning Math/CS/Engineering Design with Robotics
Snow Flake Fractal 1
|

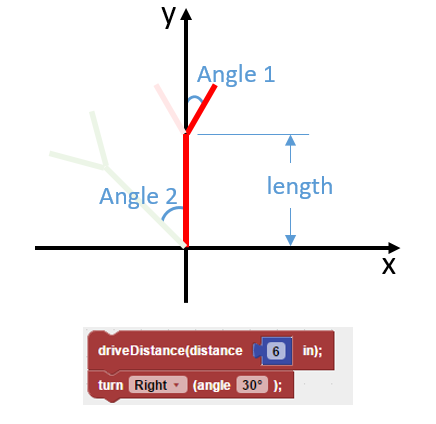

A fractal is a never-ending pattern. They are created by repeating a simple process over and over in an ongoing feedback loop. In this activity, use the driveDistance() and turn() in a loop to recreate the shown fractal design.
|
