Learning Math/CS/Engineering Design with Robotics
One-Point Perspective of a Box
|

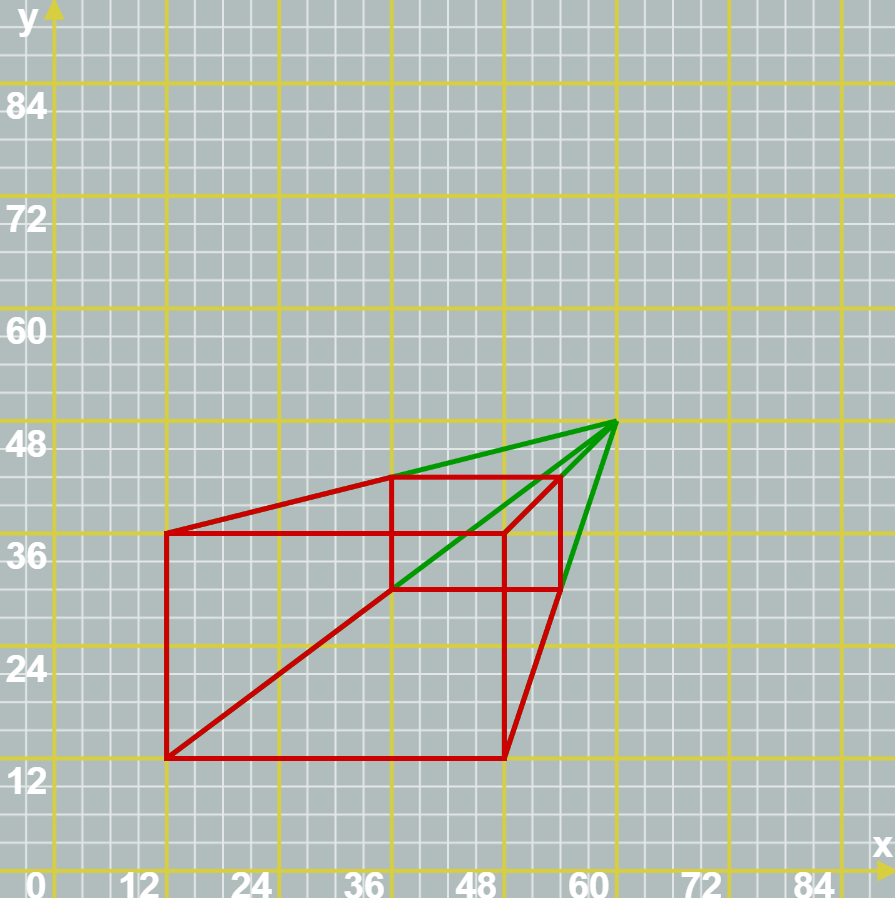

The board blocks draw a rectangle and lines with endpoints at each vertex of the rectangle that meet at a single vanishing point. The pre-placed blocks draw a small rectangle with vertices that each touch one of the four lines in red. Trace the rest of the box in red, then remove the board blocks to create a one-point perspective drawing of a box.
|
